  • Brand：YIFA

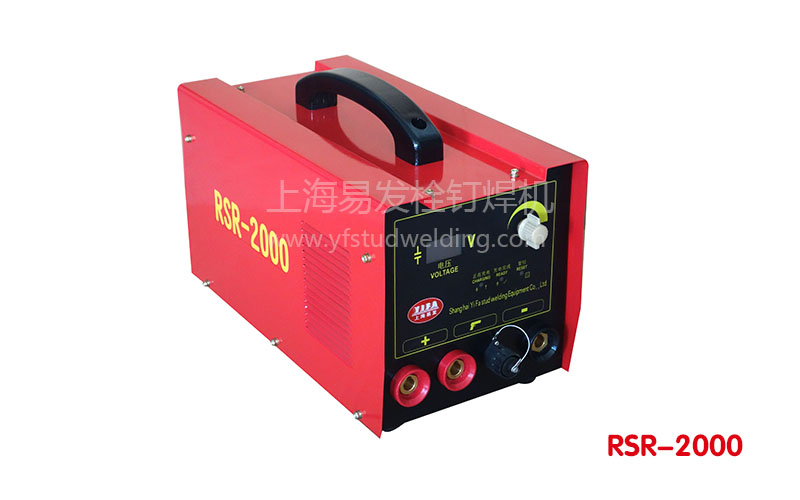

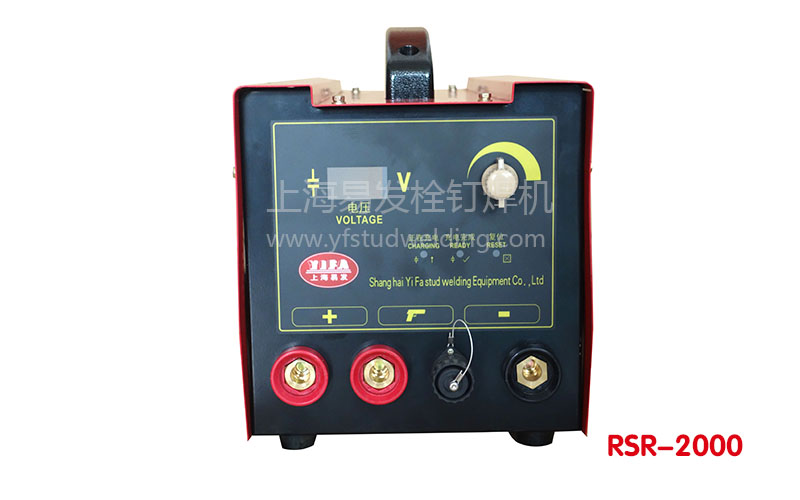

  • Name：RSR series Capacitor Discharge Stud Welding Machine
  • Model No：RSR-2000

Mainly used for: chassis, cabinets, housing, kitchen utensils, electrical appliances, metal products, ventilation ducts ≥0.3mm sheet thickness, the welding M3mm-M12mm screws, studs, pins, nails and other heat welding

Class

联系我们


Detail

Parameter

RSR series welder
* Small size, light weight, easy to carry.
* Digital lines show the charging voltage, working status indicator and intuitive, easy to operate.
* Welding parameters have been specified, you can simply press the logo to adjust, truly fool-shaped operating.
* Charging voltage continuous stepless adjustment, convenient, sensitive, to ensure optimal welding condition.
* Improve the variety of self, protection, safe and reliable equipment.
* Welding speed, high efficiency, saving time and effort.
* Without ceramic ring or gas.
* After welding the joint firm, the back pad deformation, no protruding scar, no discoloration.
* Alternative drilling, tapping, riveting, manual welding, resistance welding, welding and other technology slant.
* Overcome the traditional process on the sheet studs easily burned, penetration, deformation, difficult to clean and so on.
Dedicated to: chassis, cabinets, housing, barrel, container, kitchenware, electrical cabinets, electrical boxes, household appliances, stainless steel products, metal products, ventilation pipes, signs and the like; sheet thickness ≥0.3mm above, the welding M3mm-M12mm Similar stud stud nails, screws, pins, insulation nails, bolts, plate thickness to diameter of 1/10 or more studs. Welding materials: carbon steel, stainless steel, copper, aluminum and its alloys. Flat welding, vertical welding, overhead welding, full welding.
RSR series capacitor discharge welding technology parameters:

item

RSR-1600

RSR-2000

RSR-2500

input voltage

AC-220V/110V

AC-220V/110V

AC-220V/110V

power supply

transformer rectifier

transformer rectifier

变压器整流

stud weldig range

Ф3-Ф6

Ф3-Ф10

Ф3-Ф12

input power

500W

500W

500W

input voltage

DC（36-200）V

DC（36-200）V

DC（36-200）V

welding time

0.001-0.003秒

0.001-0.003秒

0.001-0.003秒

welding frequency

（10-30）支/分钟

（10-30）支/分钟

（10-30）支/分钟

cooling ways

efflux fan

efflux fan

外排式风扇

protect grade

IP31

IP31

IP31

welding power source

electrolytic capacitors

electrolytic capacitor

电解电容

capacitence

66000UF

99000UF

132000UF

maximum length of weld nut

≤50mm

≤50mm

≤50mm

equipment size

41*20*21 CM

41*20*21 CM

41*20*21 CM

weight

14KG

16KG

17.5KG


Subject to technical modifications。
